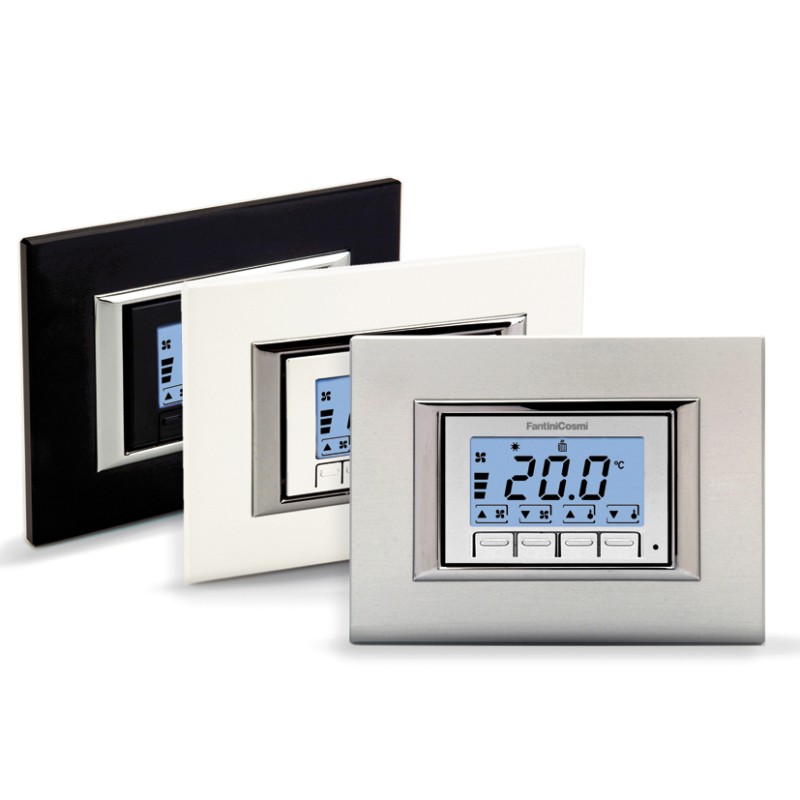

FantiniCosmi CH133RR Termostato ambiente da incasso retroilluminato

106,00 €
Tasse incluse

Termostato ambiente da incasso retroilluminato per ventilconvettori (fan-coil).

Disponibile nel nostro magazzino!

Garanzia e Sicurezza al Checkout

Our privacy policy

Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.

  • 1 What are cookies?

    Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits

  • 2 How we use cookies

    We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.

  • 3 Controlling Cookies

    Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly

  • 4 Information We Collect

    We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.

We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.

We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.

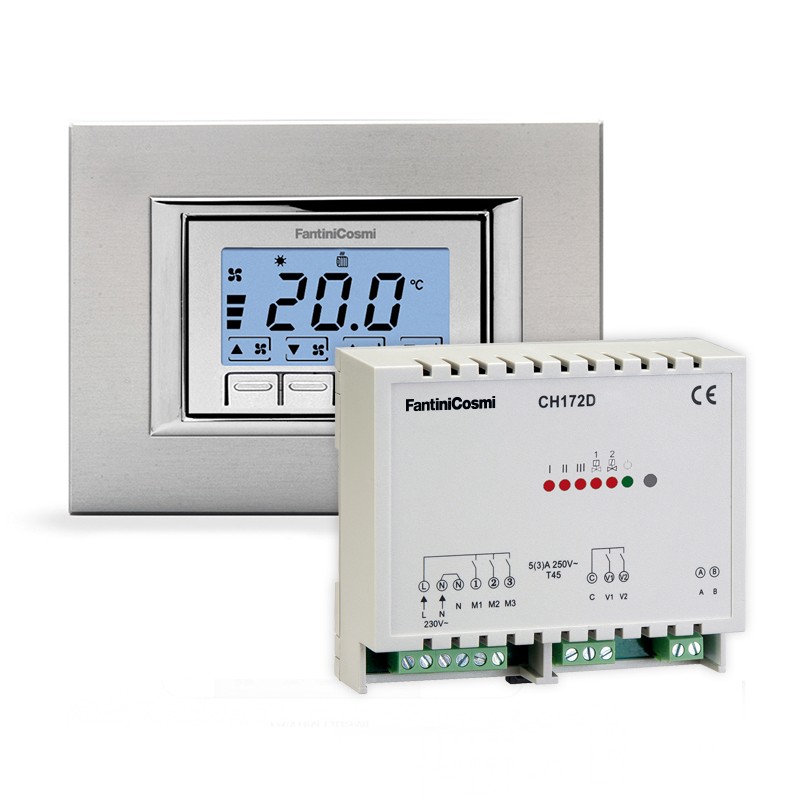

CH133RR è un KIT composto da un termostato per il comando di fan-coil a 2 o 4 tubi e da un attuatore remoto cod. CH172D.

Caratteristiche generali

TERMOSTATO

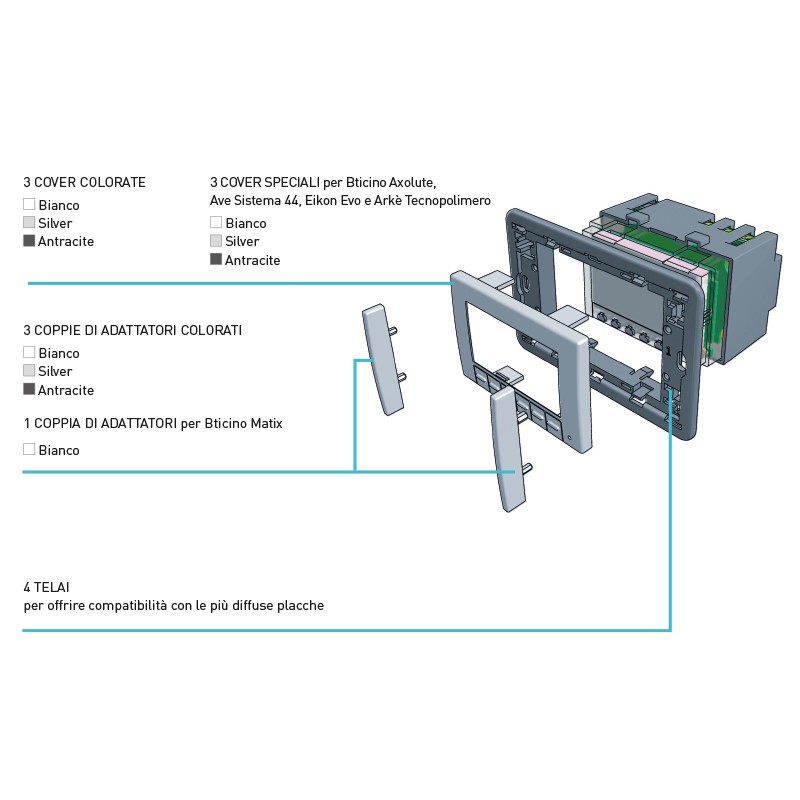

Adattabile a tutte le placche in commercio grazie al kit multiplacca composto da:
– 3 COVER COLORATE: bianco, silver, antracite
– 3 COVER SPECIALI per Bticino Axolute, Ave Sistema 44, Eikon Evo e Arkè
– 3 COPPIE DI ADATTATORI COLORATI: bianco, silver, antracite
– 1 COPPIA DI ADATTATORI per BTicino Matix: bianco
– 4 TELAI per offrire compatibilità con le più diffuse placche
Selezione velocità ventola: manuale su 3 livelli (minimo, medio, massimo) e Auto
Regolazione della temperatura ambiente sia in riscaldamento che in raffrescamento
Ingresso ausiliario per contatto finestra e/o termostato di minima, ingresso per sonda esterna.
Distanza sonda della temperatura esterna 10 m max
Gradiente termico di riferimento 4 K/h
Lunghezza massima cavo attuatore 100m
Morsetti a vite.
Doppio isolamento.

ATTUATORE
Ingresso: comandi termostato
Contatti in commutazione liberi da tensione: 2 uscite valvole
Contatti in commutazione a tensione di rete: 3 uscite contatti motore
Contenitore: IP00 (grado di polluzione 2)
Software classe A
Temperatura massima T45
Disconnessione tipo 1B (microdisconnessione)

Caratteristiche elettriche

TERMOSTATO
Alimentazione da attuatore remoto.
Attuatore remoto con 5 relé di uscita, tensione 250 Vca
Portata contatti 5(3)A.

ATTUATORE
Alimentazione 230V 50 Hz
Potenza assorbita 2VA
Portata contatti: 5(3)A250 V~
Tensione impulsiva 4000V

CH133RR
